Hydraulic systems play a vital role in powering machinery across industries, from construction equipment to industrial automation. At the core of every hydraulic system lies the hydraulic pump, responsible for transferring fluid throughout the system by generating the necessary pressure. Depending on their operating principles, there are several type of hydraulic pumps. One of the most widely used is the gear pump. Gear pump features a simple and compact design, yet they are the most durable compare to other pump types.
What is a Hydraulic Gear Pump?
A hydraulic gear pump is a type of positive displacement pump that uses the meshing of gears to pump fluid by displacement. It is one of the most common pumps in hydraulic systems due to its reliability, compact design, and ability to generate consistent flow at various pressures.
How does a Gear Pump Works?
Inside a hydraulic gear pumps, there are two main gears to operate the pump: driving gear and driven gear. Driving gear is connected to the input shaft, motor would rotate this gear and driven gear rotates in synchronization with the driving gear.
As the gears come out of mesh on the inlet side of the pump, they create an expanded volume. In filling process, fluid flows into the cavities, then gear teeth trap the fluid as the gears continue to rotate against the pump housing. The trapped fluid is transferred from the inlet, to the discharge, around the casing. As the teeth of the gears become interlocked on the discharge side of the pump, the volume is reduced and the fluid is forced out under pressure.
Types of Hydraulic Gear Pumps
Generally, there are two main types of gear pump:
- External Gear Pumps – feature two identical gears that rotate against each other. Known for durability and wide industrial use.
- Internal Gear Pumps – use an internal and external gear arrangement, offering quieter operation and higher efficiency at lower speeds.
Advantages of Hydraulic Gear Pumps
- Simple and compact design
- Cost-effective
- High reliability
- Ability to handle high pressures (up to 250 bar for standard designs)
- Good viscosity range for different hydraulic fluids
Applications of Hydraulic Gear Pumps
Due to their efficiency and durability, hydraulic gear pumps are widely used in industries such as:
- Construction machinery: excavators, loaders, and cranes
- Agricultural equipment: tractors and harvesters
- Industrial machinery: presses, lifts, and machine tools
- Marine applications: steering systems and winches
- Oil & gas: drilling rigs
Besttoflow’s Specialty: Parker Commercial Intertech Gear Pump

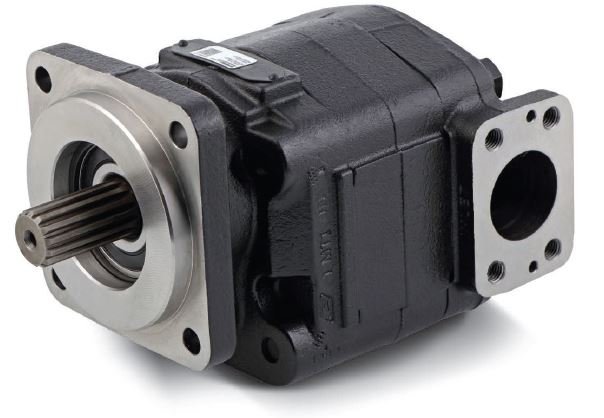

As Parker distributor, Besttoflow offers some series of gear pumps. On the top of the list is Commercial Intertech gear pump. This family of gear pump is a three-piece cast iron construction, providing durability and distribution flexibility.
Some of its main features include:
- High pressure capability: rated up to 275 bar (4,000 psi) for continuous operation, making it suitable for demanding mobile and industrial machinery.
- Efficient performance: optimized gear profiles and tight manufacturing tolerances deliver high efficiency and smooth flow, minimizing energy loss and heat generation.
- Quiet operation: advanced design minimizes pressure ripple, resulting in quieter system operation — ideal for applications where noise reduction is important.
- Versatile mounting options: available with multiple shaft, port, and mounting configurations to fit various system designs.
- Interchangeable sections: supports single or multiple pump assemblies (tandem, triple), offering flexibility for complex hydraulic circuits requiring multiple flow outputs.
This pump is customizable in aspect of displacement, mount, shaft and port thanks to the three-piece design. For more than 10 years, Besttoflow has the authority to carry the Commercial Intertech build program and committed to provide the best quality product to our partners.
Browse more about Commercial Intertech gear pump or contact us for more information.
