Getting to Know Parker Hannifin Hydraulic Solenoid Valves: The Automation Brain of Your Industrial System

In an industrial world that relies heavily on heavy-duty hydraulic systems, precise oil flow control is the ultimate key. This is where the hydraulic solenoid valve steps in as a smart switch. Among the many manufacturers worldwide, Parker Hannifin stands at the absolute forefront as the gold standard for reliability and efficiency.

To ensure cutting-edge reliability, Parker Hannifin has long been established as the global gold standard. Now, industrial players in Indonesia can easily source this premium product range through a trusted partner, PT Besttoflow System.

What Is a Hydraulic Solenoid Valve?

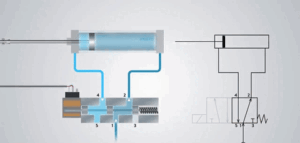

Put simply, a hydraulic solenoid valve is a valve controlled by an electrical current. Utilizing a magnetic coil (solenoid), this valve opens, closes, or changes the direction of high-pressure oil flow toward an actuator (such as a hydraulic cylinder or motor).

A Simple Analogy: If the hydraulic pump is the “heart” that pumps blood (oil), then the solenoid valve is the “brain” that determines where that blood should flow so the body (machine) can move with precision.

Why Choose Parker Hannifin?

Parker Hannifin is not just a brand; it is a guarantee of performance in extreme working environments. Here are the main advantages that make Parker products excel in their class:

Robust Design & Leak-Free Technology

Parker designs its valves with premium materials capable of withstanding high pressures up to hundreds of bars without experiencing deformation or internal leakage. This ensures energy efficiency remains optimal and prevents costly machine downtime.

Fast Response and High Precision

For modern manufacturing needs, valve shifting accuracy is measured in milliseconds. Parker solenoids offer incredibly fast and consistent response times, ensuring that the mechanical movement of machinery in the field is always accurate.

Global Compatibility & Ease of Service

Utilizing standard mounting patterns (such as ISO/NFPA subplates), Parker solenoid valves are highly effortless to integrate into existing hydraulic systems. The widespread worldwide availability of spare parts (seal kits, replacement coils) makes maintenance far more practical.

Parker’s Popular Series in the Industry

PT Besttoflow System provides various types of Parker Directional Control Valves (DCV) most sought after by the industrial sector:

D1VW Series (Nominal Size: NG06 / CETOP 03)

This series consists of high-performance 3-way or 4-way valves with 2 or 3 spool position configurations. It is exceptionally reliable for controlling small to medium-sized hydraulic cylinders or actuators.

Max. Operating Pressure: Up to 350 bar (5,000 PSI) on ports P, A, and B.
Max. Flow Rate: Reaches up to 80 Liters/minute (21 GPM) with a very low pressure drop.
Mounting Interface: Compliant with global standards DIN 24340 A6, ISO 4401, and NFPA D03.
Solenoid Voltage Options: Available in DC current (12 VDC, 24 VDC) or AC current (110 VAC, 230 VAC) choices.

D3W Series (Nominal Size: NG10 / CETOP 05)

If your system requires a larger oil capacity without sacrificing installation space, the D3W series is the ideal answer, thanks to its dynamically optimized internal flow path design.

Max. Operating Pressure: Consistent up to 350 bar on the main ports.
Max. Flow Rate: Capable of delivering oil volume up to 150 Liters/minute for DC current (and up to 115 Liters/minute for AC current).
Mounting Interface: Adopts standard mounting patterns DIN 24340 A10, ISO 4401, and NFPA D05.
Additional Features: Features a Soft Shift option (smooth spool transition assisted by a special orifice) to dampen hydraulic shock when the valve shifts positions.

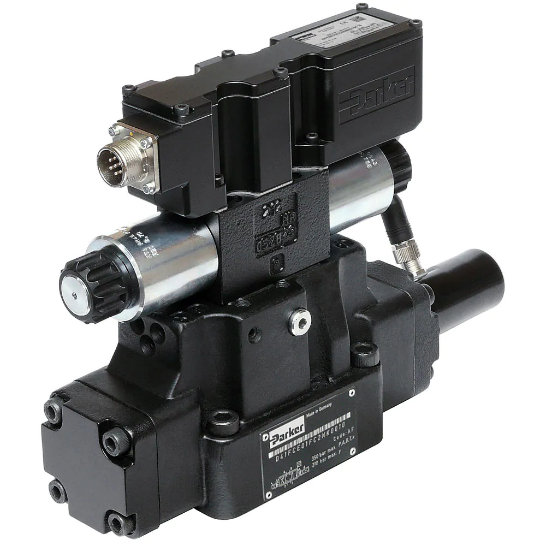

Proportional Valve Series (Extreme Precision Control)

For robotics or industrial machinery applications that require more than just simple on/off functions—specifically gradual control over cylinder speed and positioning—Parker provides a line of proportional valves. These valves are equipped with electronic feedback sensors to deliver highly accurate dynamic responses in every millisecond of their displacement.

The technical data above ensures that no matter the scale of pressure and oil flow rate in your factory machinery, Parker Hannifin has the precise valve specifications to maintain operational stability.

Partner with PT Besttoflow System for Your Hydraulic Needs

As your trusted partner for high-performance hydraulic solutions, PT Besttoflow System is committed to delivering genuine products, expert technical support, and solutions customized to your unique engineering requirements.
