Prevent Downtime & Leaks on Offshore Rigs with Parker Quick Disconnect Coupling Solutions

October 27, 2026

Guide to Choosing Parker Quick Disconnect Couplings for Oil & Gas Industry Applications

Learn how to choose the right Parker Quick Disconnect Coupling for the Oil & Gas industry. Discover leak-proof features, API 16D certification, and extreme corrosion resistance.

Fluid and hydraulic transmission systems in the Oil & Gas industry operate under some of the harshest conditions in the world. Exposure to corrosive seawater, extreme temperature fluctuations, and extremely high working pressures demand that every connection component (coupling) has the maximum level of reliability and safety factor.

Failures in quick disconnect couplings not only result in production stoppages (unplanned downtime) but also risk potential occupational safety and environmental hazards. Therefore, selecting the appropriate coupling specification is a crucial step in the design and maintenance of both offshore and onshore hydraulic systems.

Crucial Factors in Selecting Quick Couplings in Oil & Gas Areas

Before determining the quick disconnect coupling series to be used, several technical criteria must be considered:

Material and Corrosion Resistance: Marine environments require rust-resistant materials such as 316 Stainless Steel or special coatings (zinc-nickel) to prevent pitted corrosion caused by high salt exposure.
Working Pressure Capacity: Applications on Blowout Preventer (BOP) control units or wellheads require screw-to-connect type couplings capable of withstanding high impulse and surge pressures.
Anti-Leak Mechanism (Drybreak / Flat-Face): Flat-face valve designs minimize air inclusion during connection and prevent fluid spills during disconnection.
Industrial Safety Certification: Complying with certification standards such as API 16D for fire-safe rating categories.

Recommended Parker Quick Disconnect Coupling Series

Parker Hannifin provides various tested quick disconnect coupling series options for the energy and oil & gas segments:

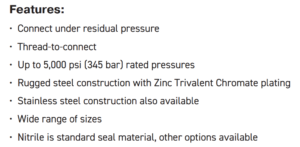

Parker 75 Series – Thread-to-Connect Heavy Duty (API 16D Compliant)

- Main Specifications: Heavy-duty steel construction, threaded sleeve connection, and complies with API 16D fire-safe certification.
- Applications: Blowout Preventer (BOP) control systems, high-pressure Hydraulic Power Units (HPU) on offshore rigs, Cranes, Power Tongs.
- Advantages: Capable of being connected under residual pressure and resistant to high vibrations without the risk of accidental disconnection.

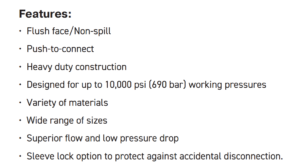

Parker 71 Series – Flat Face / Non-Spill Coupling

- Main Specifications: Flat face design with 316 Stainless Steel material options.
- Applications: Chemical injection lines, Off-Shore Drilling fluid transfer circulation, and fluid cooling systems on marine platforms.
- Advantages: Eliminates fluid spills during the disconnection process, protecting the environment from sensitive chemical contamination.

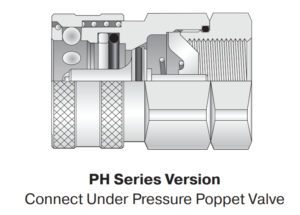

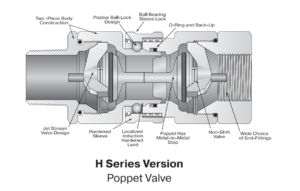

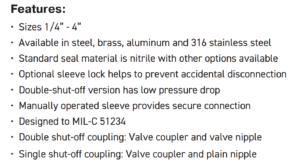

Parker H & PH Series – Snap Tite Design – Check Coupling – High Pressure

- Main Specifications: Steel ball-locking mechanism for quick connection (push-to-connect / sleeve pull-to-disconnect, Available with Double Shut-off, Single Shut-off, or Unvalved / Straight Through valve options.
- Applications: Utility lines (air, compressed air, flushing/cleaning fluids) in refinery areas (onshore/offshore), Mobile Hydraulic Power Units, Hydraulic Jacks, Hydrostatic Test Rigs.
- Advantages: The quick-action design allows for fast connection and disconnection without requiring additional tools (tool-less).

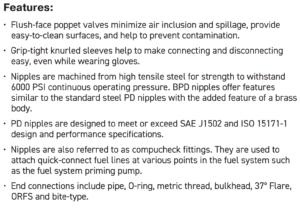

Parker PD Series – Diagnostic Test Port Couplings

- Main Specifications: Compact size, flush-face push-to-connect mechanism, specifically designed for portable testing equipment.
- Applications: Oil sampling points, transient pressure measurements (pressure transducer test ports).
- Advantages: Maintenance checks become much faster and safer without shutting down the main hydraulic lines.

Choosing a Parker quick disconnect coupling according to fluid, pressure, and operational environment specifications is an important investment to ensure the operational sustainability of your oil & gas plant or platform.
